30′ Pierced Frame Stock Flatbed Heavy Duty Gooseneck Trailer
If you are looking for a trailer that gets the job done, Custom Built Gooseneck Trailers in Sulphur Springs, Texas has one for you. This heavy duty, 30’ flatbed trailer, call for pricing , comes with dual 12,000 lb spring loaded landing gear jacks, full size LED lights for better visibility and longer lasting life of your lights, and a 3 inch rub rail with deep state pockets – ensuring you can fit any kind of strapping, chains, wire, or flats inside the pocket to follow D.O.T. regulations. For more information see below for all the features of this flatbed trailer. Custom Built Gooseneck Trailers offers a lifetime warranty on the workmanship of this trailer. Contact us today.
Pierced frame – we specialize in pierced frame design and have engineered our trailers to have all the correct spacing on all cross members set at 18 inch centers
10 inch channel iron neck – engineered to support weight ratings without adding extra unneeded trailer weight
3 inch rub rail with deep state pockets – ensuring you can fit any kind of strapping, chains, wire or flats inside the pocket to follow D.O.T. regulations

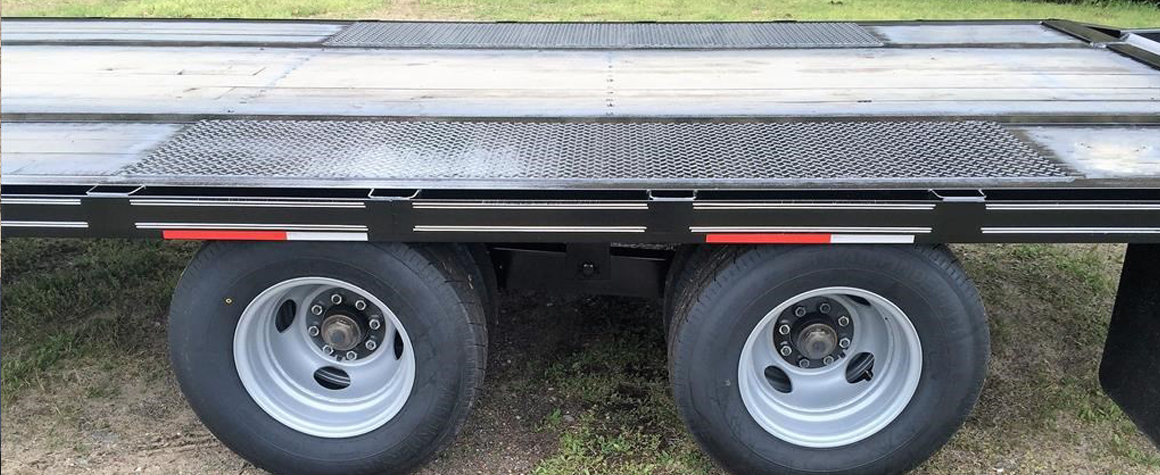

10K dexter oil bath axles – standard axles with self adjusting electric brakes

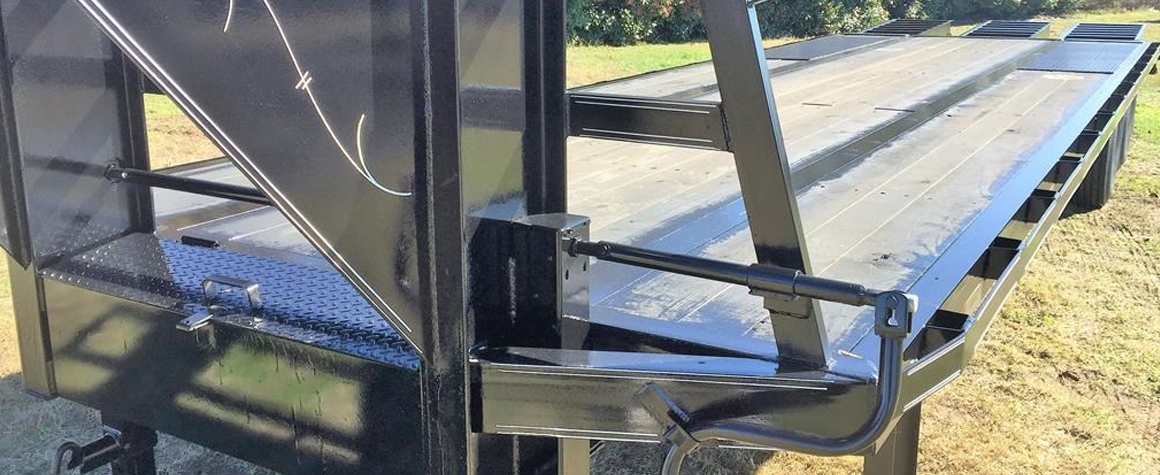

Reinforced locking toolbox between the neck for secure storage.
Secure step and handle is on the drivers side to aid getting on and off the trailer
48 inch axle spread – helps in load distribution and ease on the towing vehicle and also maximizes your turning radius

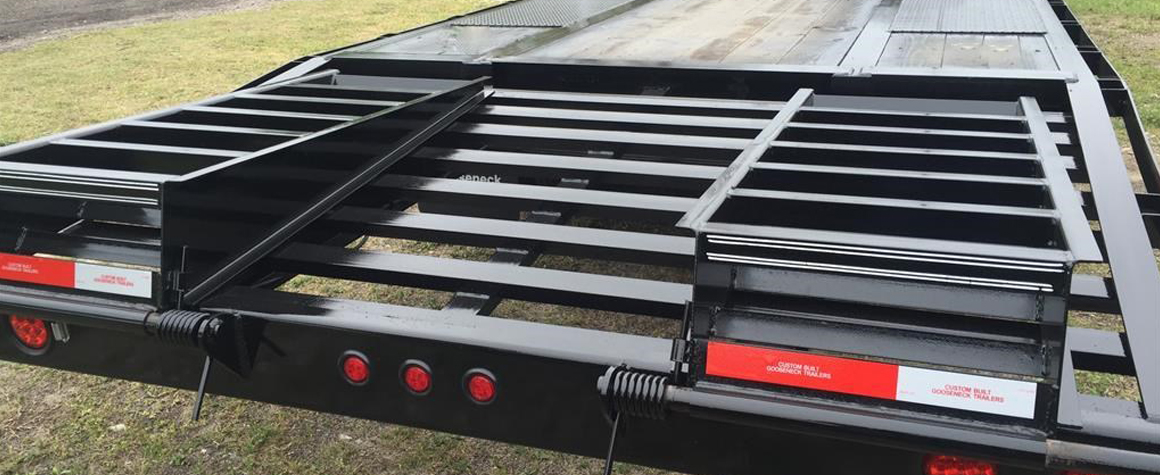

3 inch channel iron self cleaning dovetail cleats – gives extra level surface to make loading as smooth as possible
LED lights – for better visibility and a longer lasting life
Sealed one piece wiring harness
We do not splice our dovetails meaning that the I-Beam is a continuous beam and correctly distributes the weight through the frame as it is applied to the dove
All trailers come with dual 12,000 lb spring loaded landing gear jacks
Top grade treated lumber is installed with minimal knots
Single piece 3/16 inch thick diamond solidly welded above the tires
4 position coupler for maximum adjustment
ST235 x 80R16 – 10 ply radial trail finder – HT
Lifetime warranty on workmanship of the trailer.
